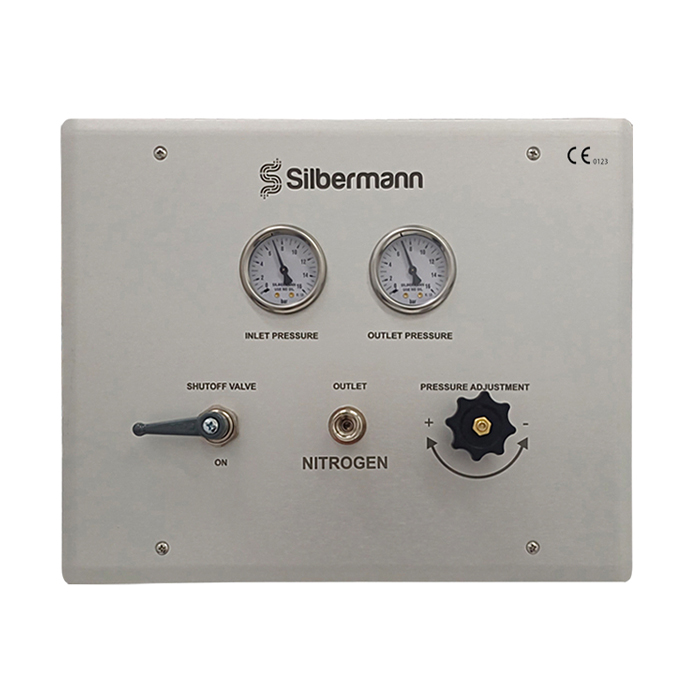

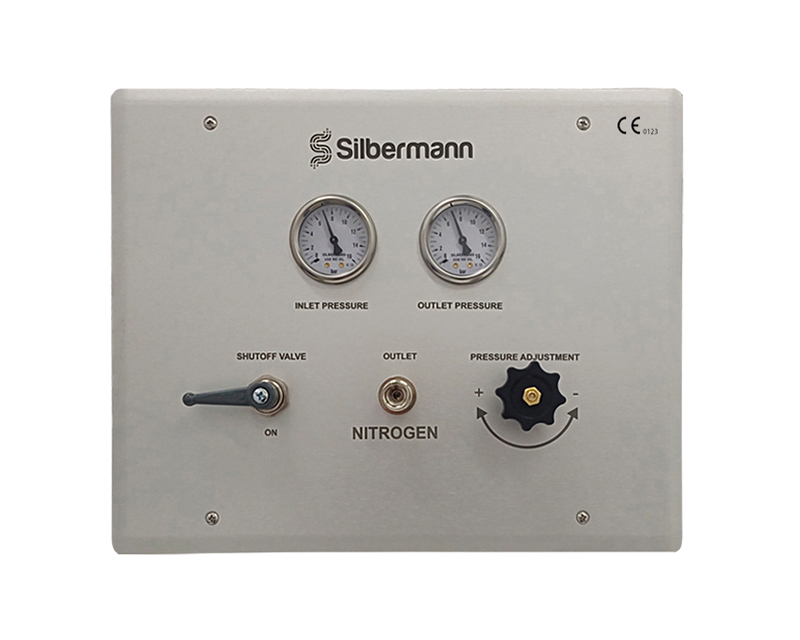

Medical Gas Control Panel

The SILBERMANN medical gas control panel supplies adjustable pressure,
as required, to pneumatic-driven surgical tools in the operating theaters.

Silbermann’s gas control panel is designed to meet the
latest and most rigid American NFPA99 and
European EN ISO 7396-1 requirements.

Downloads:

Spec Sheets
  • Compatible with Nitrogen or Industrial Air
  • Easy, safe, and reliable connection
    between the medical equipment
    and the medical gas distribution system
  • Anodized Aluminum front with
    rounded edges for aesthetic appeal
  • Manual shut-off valve
  • Inlet & outlet pressure gauges
  • DISS or NIST outlet connection
  • A Knob to adjust outlet pressure

Medical Gas System Standards:

  • NFPA99, EN ISO 7396-1

Silbermann’s Quality Management System:

  • ISO 9001-2015
  • ISO 13485-2016
  • CE mark
  • Panel: 3 mm anodized Aluminum plate
  • Compatible with Nitrogen or Instrument Air
  • Box: Galvanized steel case,
    powder-coated Ral     9016 (White)
  • Inlet Pressure Guage: 0 - 25 bars
  • Adjusted Pressure: 0.5-16 bar.
  • Flow Capacity:
    • 70 m3/h @ 10 bar
    • 90 m3/h @ 16 bar
