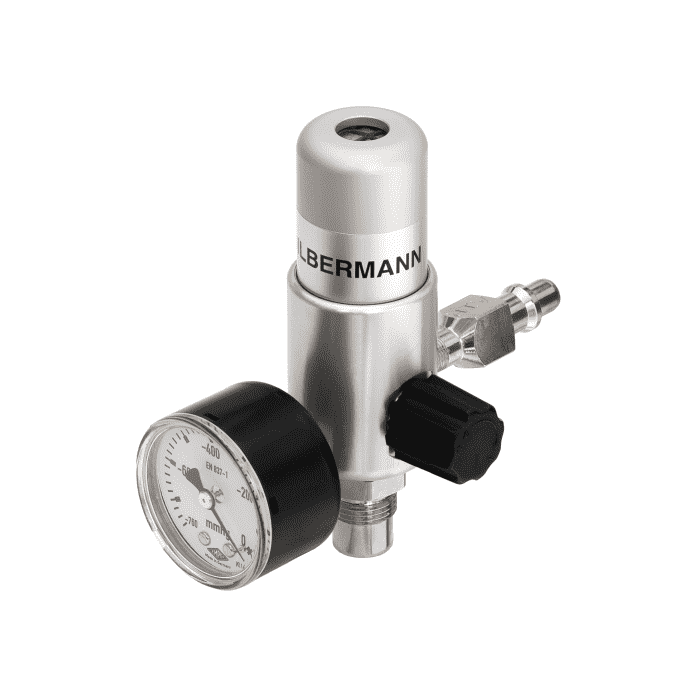

Vacuum Generator

A vacuum generator is a unit in which vacuum is produced by the venturi effect, using either compressed air or oxygen as input.


Working pressure: 3.5-5.5 bars.
Consumption of gas (oxygen / air) 15-40 LPM.

Downloads:

Spec Sheets
  • Vacuum gauge scale: 0-760mmHg
  • Working Pressure 3.5- 5.5 Bar
  • Consumption of gas (Oxygen/ Air)
    15-40 LPM
  • Generated Vacuum pressure -
    550mmHg
  • Inlet- 1/8” NPT for male adaptor
  • Outlet- Vacuum DISS male outlet
  • Vacuum adjusting knob

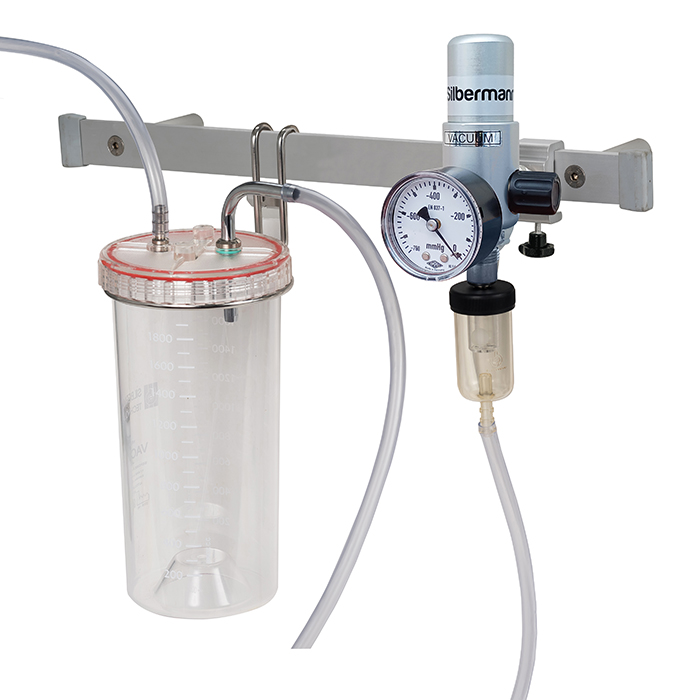

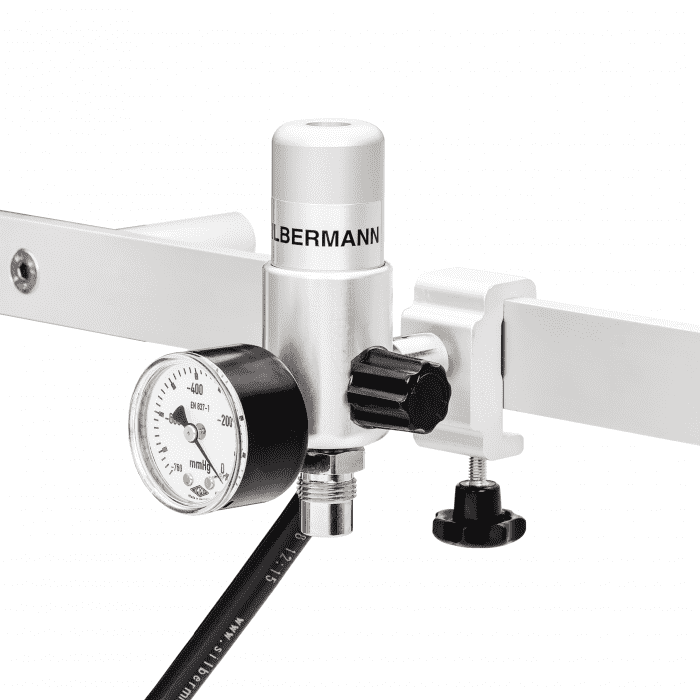

  • Rail mounted Vacuum Generator
    includes     1-meter flexible medical tubing
    with     probe, and a universal rail clamp



Silbermann’s Quality Management System:

  • EN ISO 13485-2016
  • ISO 9001-2015
  • CE marked
