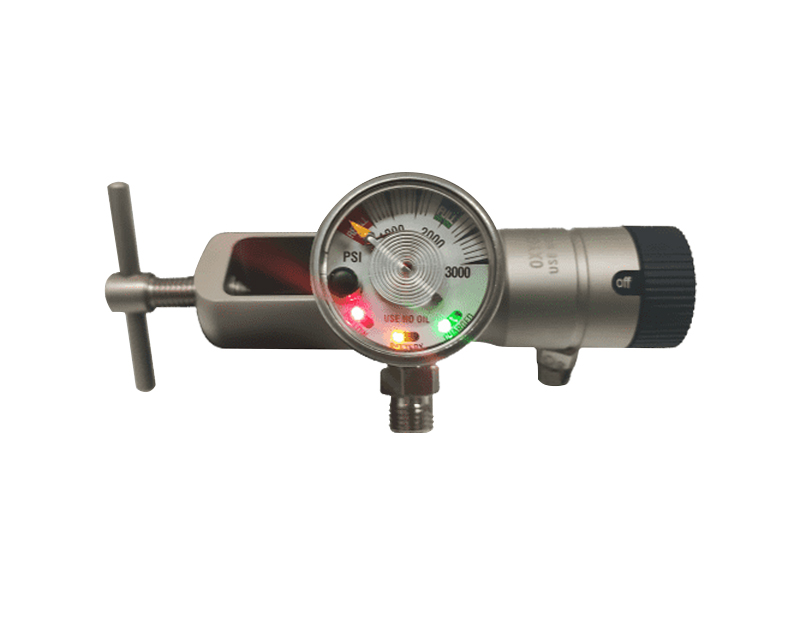

Portable Medical Oxygen Regulator with Audio & Visual Indicator

This new oxygen regulator offers
both visual and audio alerts
for low oxygen pressure,
delivering several key benefits to
maintenance and medical staff:


■ For Maintenance Technicians:
    It enables quick and easy
    identification of oxygen cylinders
    that require refilling, ensuring
    technicians can maintain reliable
    and safe service for the
    medical team in all clinical
    situations where portable oxygen
    cylinders are needed.


■ For Medical Staff: The early alert
   system helps prevent critical
   incidents by providing timely
   warnings of low oxygen pressure,
   ensuring uninterrupted oxygen
   supply during patient care.

Downloads:

Spec Sheets
  • LED Indicators for Oxygen pressure:
    • Green - Oxygen Pressure Normal
    • Red - Oxygen pressure low*
  • Audio alarm for low Oxygen pressure
  • Test Button for LEDs & audio alarm
  • LED Indicator (yellow) for battery charge**
  • Inlet Connection: Pin-indexed yoke or 3/4G
  • Inlet Pressure: Up to 200 Bar
  • Flow Selector:
    0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 15, 25 LPM
  • Gauge:
    • 0-315 Bar - Standard,  0-4000 PSI
       - Optional
    • Guage protection rubber - optional
  • Material of Construction
    • Body: Nickle plated Brass

Applicable Standards:

  • EN ISO 10524-1 (Pressure regulators
    with flow metering device).
  • CGA E7 (American Standard)

Silbermann’s Quality Management System:

  • EN ISO 13485-2016

*Alarm pressure set to 500 PSI (34 bars)- changeable upon order ±100 PSI (± 6.8 bars)
** Long battery life lasting for several years
