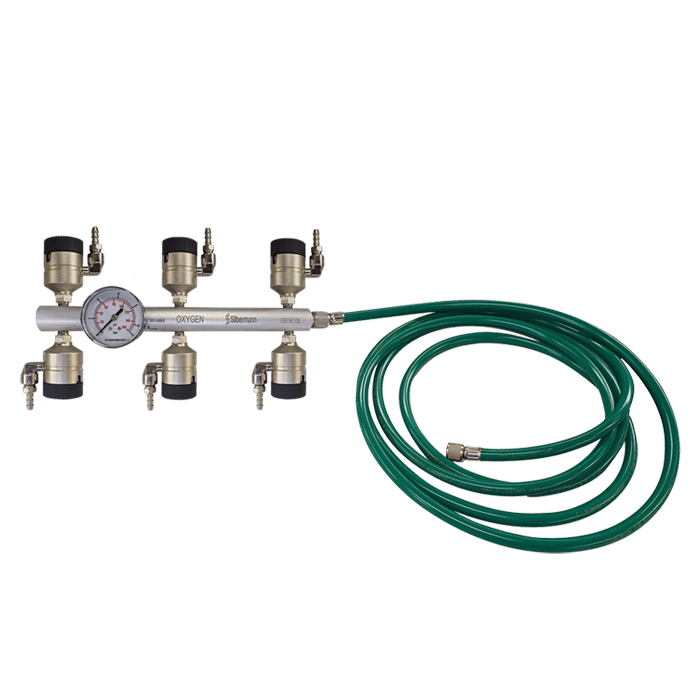

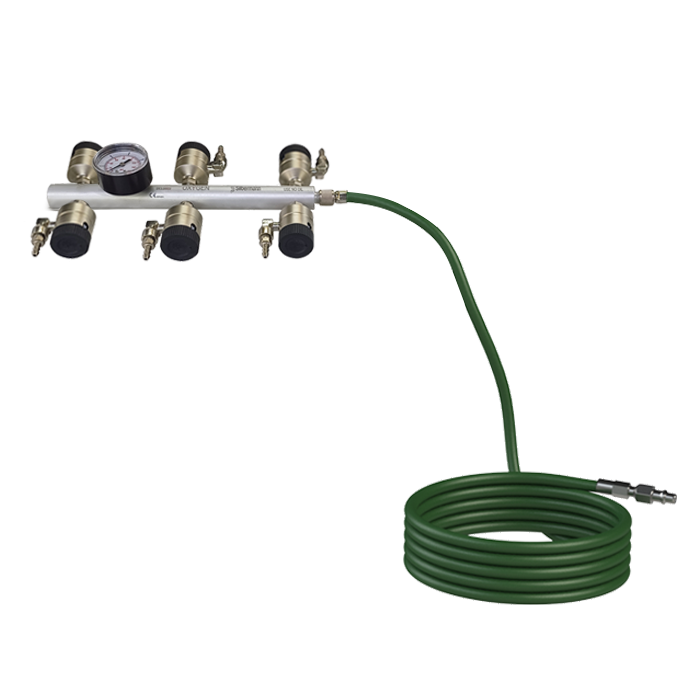

Portable Multi User Oxygen Unit

The Portable Multi Users Oxygen Unit enables to connect
in an emergency, between 4 to 8 patients to an oxygen source
at the same time at an alternative care site.

The source could be a wall outlet or a portable cylinder with a regulator.
The device includes an Oxygen distribution tube made of
aluminum with 4-8 oxygen units.





Downloads:

■   Multi-user- Administer Oxygen to up to
     8 patients
at once from a single source
     or cylinder.

■   Efficient & Flexible- Individual flow
      adjustment knob for each patient.

■   Patient Friendly- Designed to enable
      humidifier connection for each patient
      to ease respiration.

■   Modular units- designed to provide
     ganging
between two to three units
     in the field to
form multiples.

■   Optional Source connections-
      4-meter-long
medical tubing enables
      connecting to a portable Oxygen
      cylinder or a stationary source/ outlet.

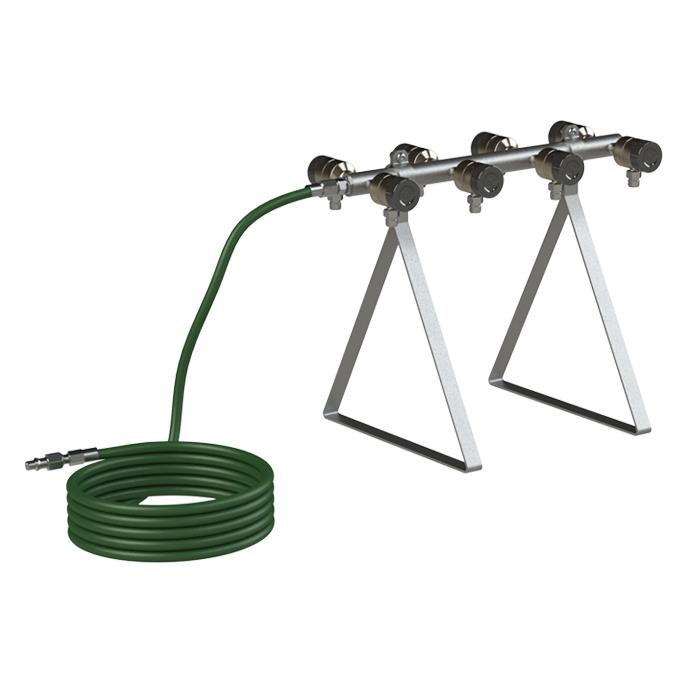

■    Aluminum stands for a stable positioning
      at any location-optional*

■   Different probes are available for the
      tubing.

■   Complete system including:
     dial selector & tube with a probe

* The aluminum stands can be added upon customer request



Silbermann’s Quality Management System:

■   EN ISO 13485-2016
■   ISO 9001-2015
■   CE marked

Flow rates:
■   0-25LPM: 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10,
     15, 25.

Connections:
■   Flow selector Outlet: DISS
■   Tube length: 4 meters**
■   Tube probe: Silbermann-Ohio, ENV 737-6,
      DIN 13260-2, Puritan Bennett type, BS,
      Chematron,
DISS, AGA*



Device Material: Anodized Aluminum

* Other probes available on request
** Variable tube length available on request
